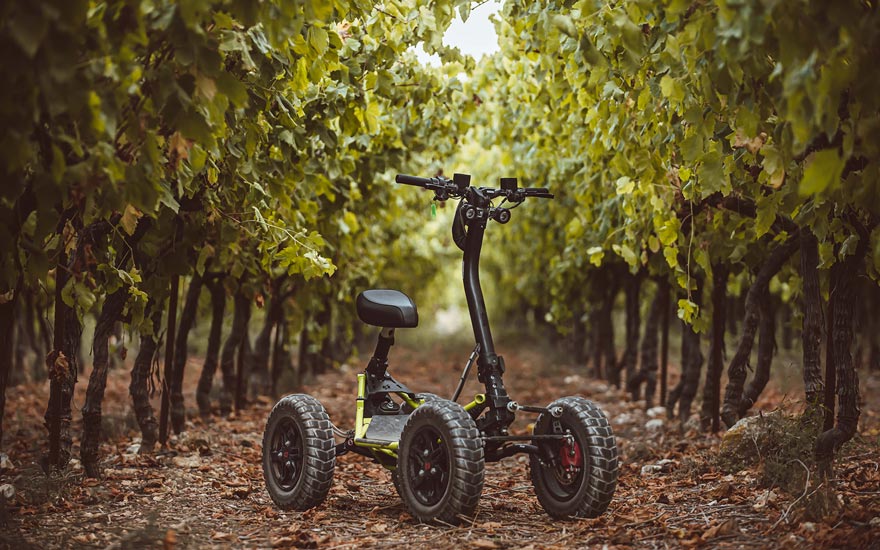

A revolutionary lightweight electric vehicle with a new level of standards for extreme, personal, and professional mobility
Dare to move DIFFERENTLY
Technology

EZRAIDER sets a new standard in personal mobility, placing state of the art technology right in your grip. So much more than an off-road vehicle, the EZRAIDER is a completely new, patent protected concept in maneuverability. Intuitive to operate, this fully electric ATV is designed for use in both urban environments and backwoods trails. Features include advanced all wheel’s drive (AWD), hub motors with direct wheels transmission, energy efficiency capability and payload capacity about twice vehicle weight, all integrated with a unique and simplicity of design.

Motor

AWD system with two or four (based on the model) direct transmission wheel hub motors that feed direct torque to each wheel independently providing maximum efficacy

Controllers

Fully functional EV controllers for a smooth driving experience, with a specific controller for each motor to maximized efficiency.

ENERGY EFFICIENCY

Regenerative braking system captures kinetic energy from the vehicle’s momentum to recharge the battery.

BREAKING SYSTEM

Hydraulic brake discs on each wheel, front and back brake handles for maximum control and improved safety, including hand brake capability

Battery

Lithium Ion 60 volt battery, high capacity 1740 W-Hr. \ 2.700 W-hr.

Suspension mechanism

Patent-protected 3D suspension mechanism long travel to overcome obstacles in difficult off-road conditions for extreme maneuverability.

PAYLOAD CAPACITY

 capable of hauling about twice its weight, maximum 200 kg.

Mobility
without
limits.
Performance

EZRaider family product offers an all-new driving experience. The meticulous development and our innovative features guarantee a smooth ride on any terrain. Traveling in terrain soil or
cruising in the urban view, you can rest assured this vehicle won’t let you down!

Terrains
Ideally suited for urban conditions: asphalt or semi-paved road surfaces. HD – Best suited to mud, snow or sand.
Maintenance
Simple, easy and economical.
safety
Four-wheel configuration with a low center of gravity for maximum stability.
Design
Advanced, simple and robust design assures all features are easily accessible.
functional uses
Driving through town or extreme off-roading? EZRaider is your ideal choice! Our compact, unique design makes us the ultimate solution for all your mobility needs; a sturdy, dependent work tool, or a rugged but safe extreme sports vehicle, EZRAIDER can be used by individuals or in groups for fieldwork, security detail and fun.
technical specification

Display panel – includes battery operational function keys (optional)

Hand guard for maximum safety

Removable seat

Standing board

Front lighting LED

Compact and easily foldable for transport – can fit into the trunk of a pick-up / station wagon

Front and rear braking system

Wheels 120/90-10

Lithium-Ion 60V – 1740 W/h battery

1200 W motor in both rear wheels

Length
161 cm / 63"
Width
65 cm / 26"
Height
127 cm / 50"
Height Folded
64 cm / 25"
Estimated Dry Weight
95 kg / 209 lb
Payload
170 kg / 375 lb
Ground Clearance
19 cm
Approach Degree
90 deg
Departure Degree
90 deg
Tires
120/90-10
Max Speed
Up to 40 Km/hr / 24.8 miles
Max Range
35 Km

Download our brochure for additional details and full specifications.
